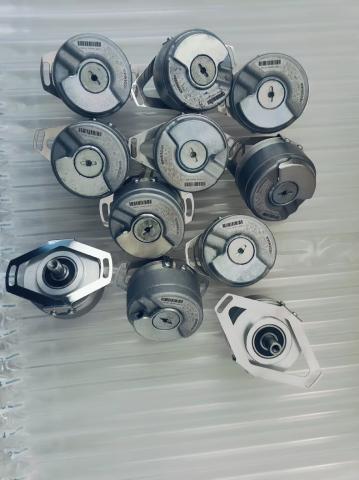

    • HEIDENHAIN EQN 1325 Incremental Rotary Encoder

    • Model : EQN 1325.020-2048
    • Specification Value
      Type Incremental, optical scanning
      Resolution 2048 pulses per revolution (PPR)
      Output Signal 1 Vpp sinusoidal (HTL/TTL compatible)
      Max. Speed 12,000 rpm
      Accuracy ±10 arcsec
      Shaft Diameter 6 mm with clamping collar
      Flange Type 020 (58 mm face-mount, 3-bolt pattern)
      Supply Voltage 5 VDC ±5%
      Current Consumption ≤ 120 mA
      Operating Temperature -40°C to +100°C
      Protection Class IP64 (dust/splash resistant)
      Vibration Resistance 100 m/s² (10-2000 Hz)
      Shock Resistance 1000 m/s² (6 ms duration)
    • Add To Inquiry
    • Have a question?
    • Share:
    Details

    ① High-Density Grating

    • 2048 lines on 36 mm diameter glass disk
    • Integrated index pulse (1 per revolution)

    ② Robust Construction

    • Stainless steel shaft with corrosion-resistant housing
    • Sealed ball bearings (50 N axial / 30 N radial load capacity)

    ③ Signal Output Options

    • Channel A/B with 90° phase shift + reference R
    • Complementary signals (A̅/B̅/R̅) for noise immunity

    ④ Industrial Connectivity

    • Pre-wired with 2 m PUR cable (option: -SK connector version)

    Applications

    • Speed feedback for servo motors ≤ 3 kW
    • Position control in packaging machinery
    • Angular measurement in textile equipment
    • Conveyor system synchronization
