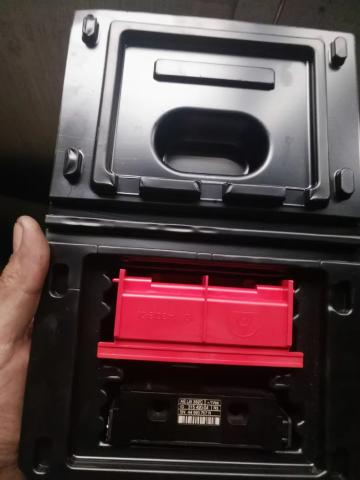

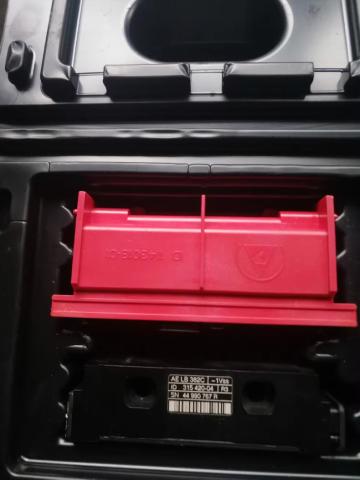

    • HEIDENHAIN AELB 382C Linear Encoder Readhead

    • Model : 315420-04
    • Category Specification
      Signal System EnDat 2.2 bidirectional digital interface
      Resolution Up to 0.001 μm (1 nm)
      Max. Speed 180 m/min
      Accuracy ±0.5 μm/m (with matching scale)
      Scanning Method Opto-electronic scanning with cross-grid imaging
      Mounting Gap 0.9 mm ±0.1 mm (typ.)
      Operating Temp. 0°C to +50°C (32°F to 122°F)
      Vibration 5 g (10-2000 Hz)
      Shock 100 g (6 ms duration)
      Protection IP67 (dust/water resistant)
      Cable Length 3 m (standard), 10 m (optional)
      Supply Voltage 5 VDC ±5%
      Current Draw ≤ 250 mA
    • Add To Inquiry
    • Have a question?
    • Share:
    Details

    Absolute Position Measurement



    • Provides absolute position on power-up without homing
    • 30-bit single-turn resolution (1,073,741,824 positions)



    Advanced Diagnostics


    • Real-time monitoring of signal quality (signal amplitude, contamination alerts)
    • Automatic compensation of mounting errors (yaw/pitch)


    Compatibility


    • Designed for LC/LS/LMA linear scales (pitch 20/40 μm)
    • Direct integration with Siemens SINUMERIK/840D sl via DRIVE-CLiQ


    Industrial Robustness

    • Reinforced housing with titanium alloy base
    • Resistant to cutting fluids, coolants, and metal chips
